project: Inside Out House
location: Starlight, PA
date: 1992
contact: hMa hanrahanMeyers architects

This project, a summer lake house, is located in Starlight, Pennsylvania just south of the New York border.  The client, a woman whose primary residence is New York City, has commissioned the house and construction is scheduled for the summer of 1992.  Conceptually the house is a cube, which has been subjected to the action of carving.  This action has created a new space, which becomes at once interior and exterior in its aspect.  Inserted into the exposed surfaces of the original solid are objects that mediate between the remaining cubic volume and the new inside/out space.  These mediating elements act as conduits for communication between interior and exterior spaces of the house; they also become accoutrements, or exterior furniture for the new inside/out space.

The materials for the house are concrete block and concrete slab, with painted steel and interiors which are sheetrock with a skim-coat of plaster.

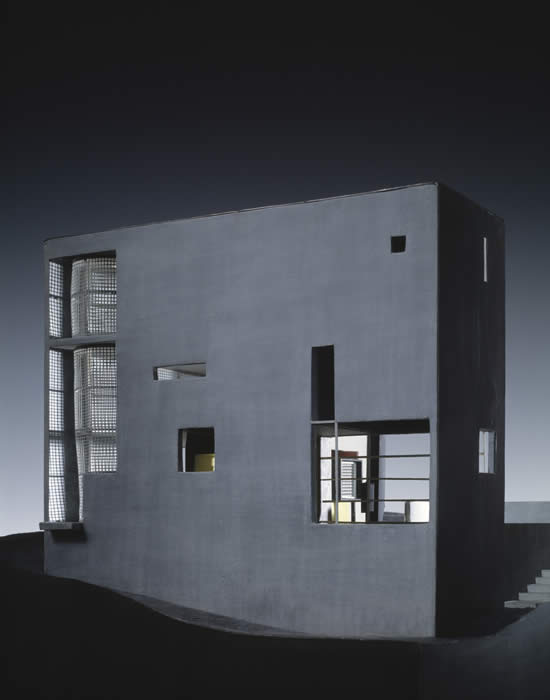

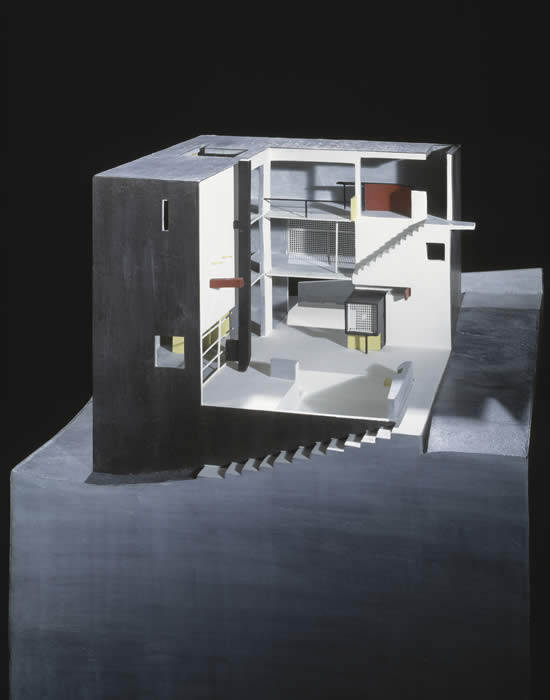

model

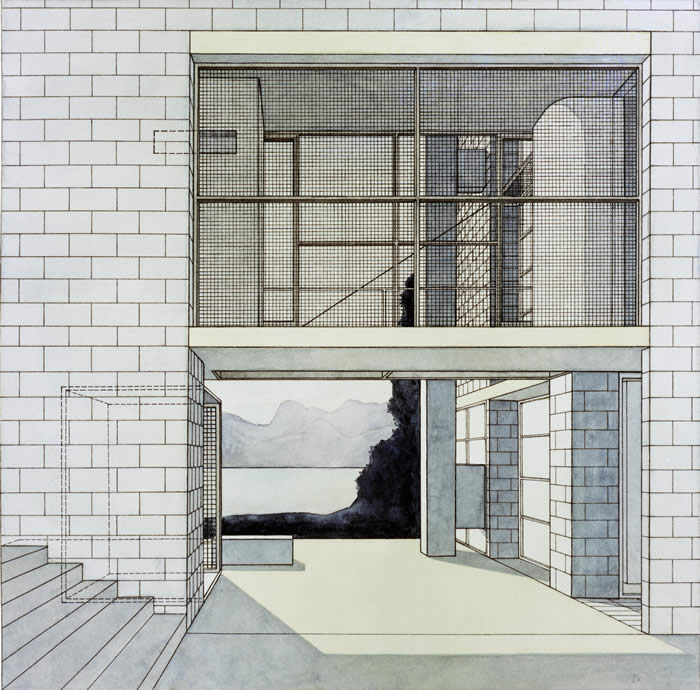

main entry elevation (painting)

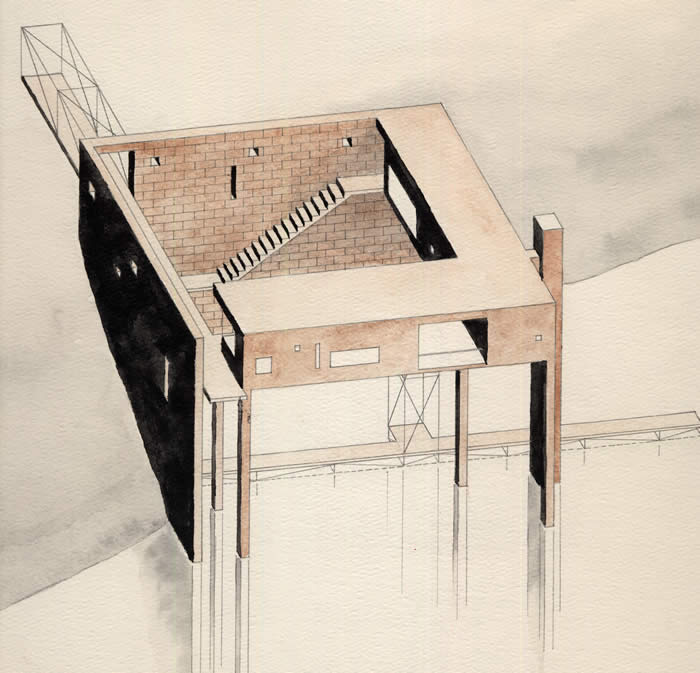

bird's eye perspective

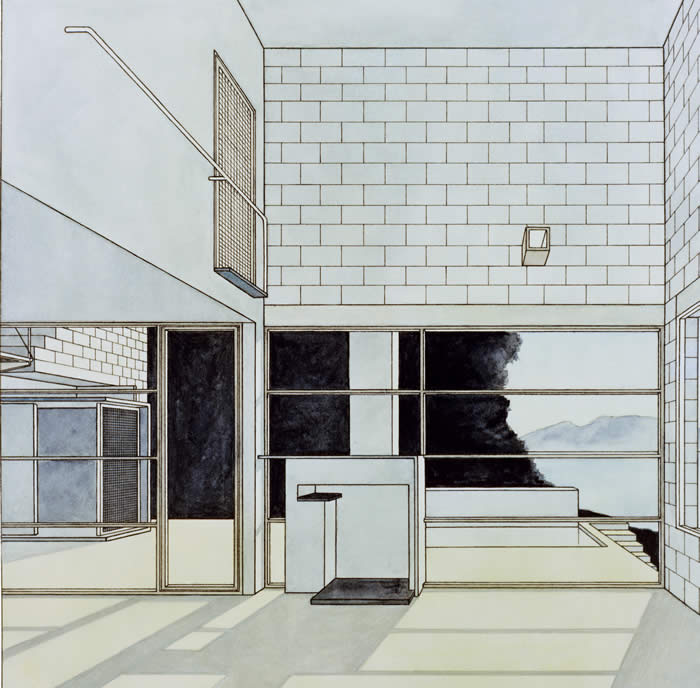

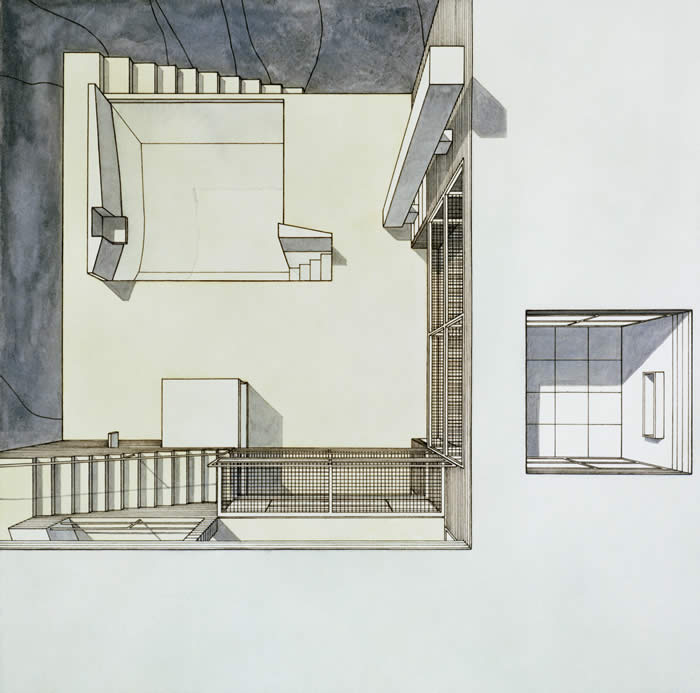

interior living room view

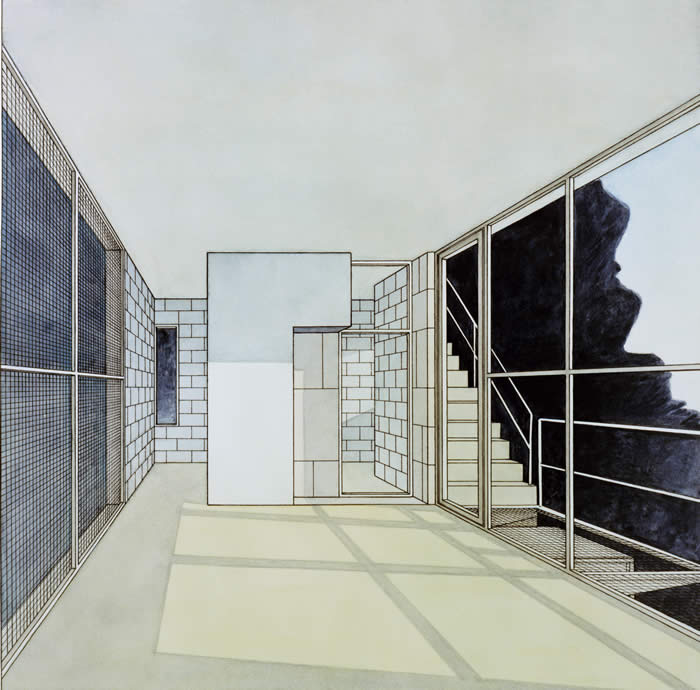

interior view - second floor


original idea sketch for house

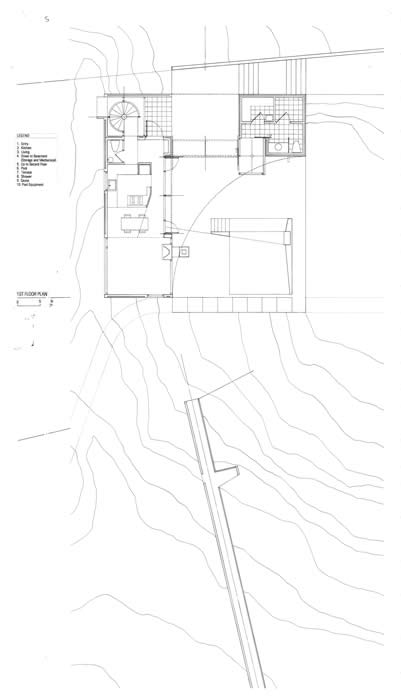

ground level floor plan

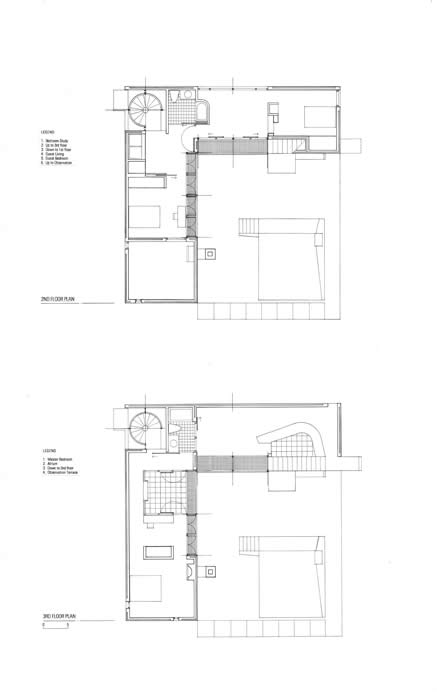

2nd and 3rd floor plans


section / massing diagram

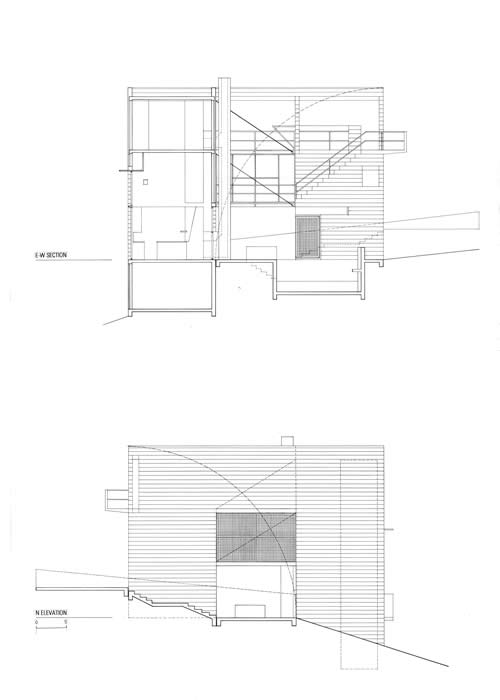

north elevation / east-west section


west elevation / north-south section

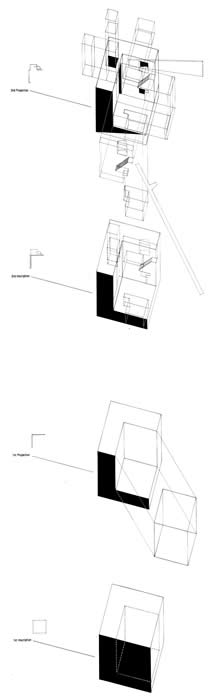

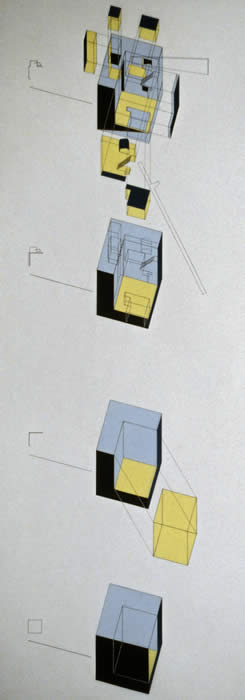

massing diagram


massing diagram (color)

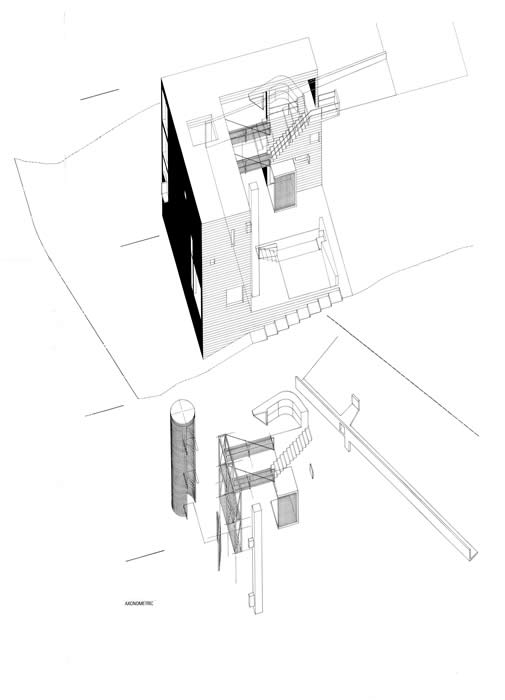

exploded isometric

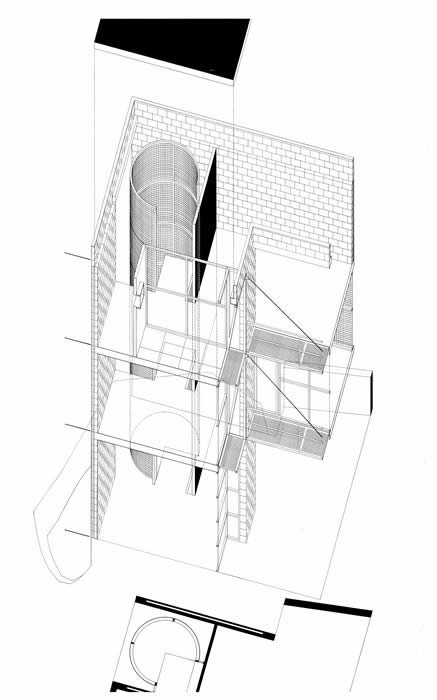

detail isometric

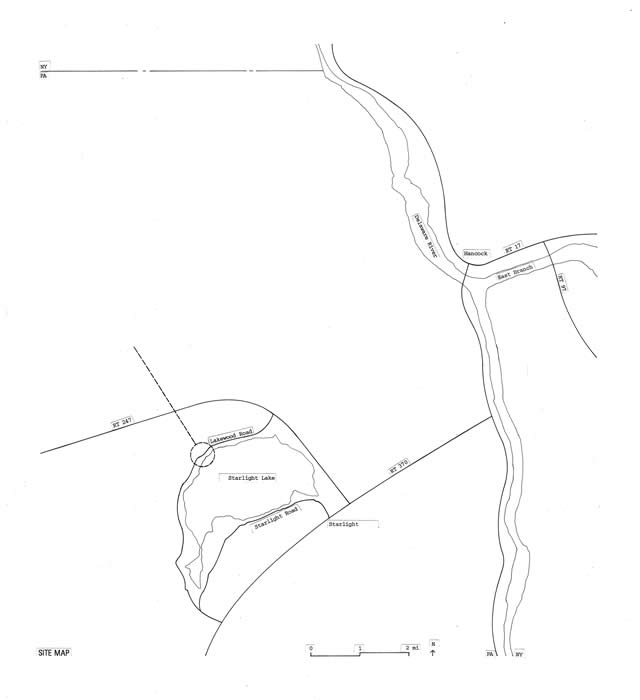

site map

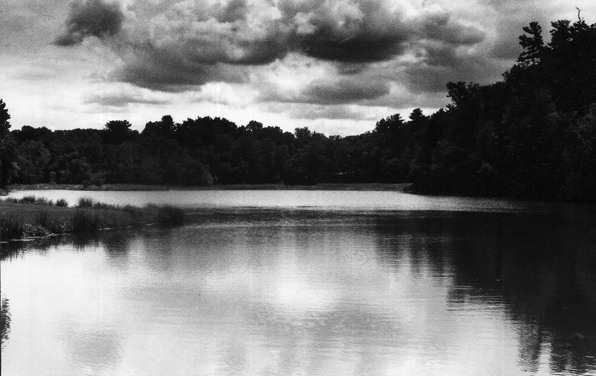

site photo
